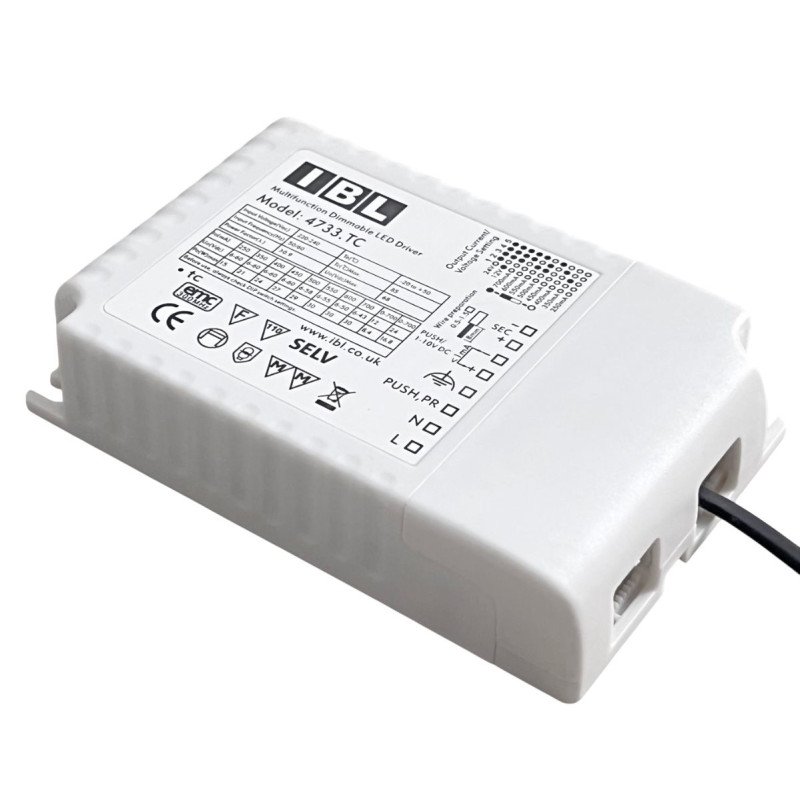

IBL 4733.TC Multifunction Dimmable LED Driver

       Product Specifications:

         IBL 4733.TC Multifunction Dimmable LED Driver

• Model: 4733.TC
• Input Voltage (Vac): 220-240
• Input Frequency (Hz): 50/60
• Power Factor (λ): 0.9
• Ta (°C): -20 to +50
• Tc (°C) Max.: 85
• Uo (Vdc) Max.: 68
• Io(mA) / Uo(Vdc) / Po(W)max: 250mA / 6-60Vdc / 15W, 350mA / 6-60Vdc / 21W, 400mA / 6-60Vdc / 24W, 450mA / 6-60Vdc / 27W, 500mA / 6-58Vdc / 29W, 550mA / 6-55Vdc / 30W, 600mA / 6-50Vdc / 30W, 700mA / 6-43Vdc / 30W, 0-700mA / 12Vdc / 8.4W, 0-700mA / 24Vdc / 16.8W
• Material: Plastic
• Before Use, Always Check DIP Switch Settings.
• Dimensions: (L)108mm x (W)72mm x (H)27mm
